Vue之甘特图Gantt

Vue使用 dhtmlx-gantt 生成甘特图

Posted by ZXZ on May 18, 2022

安装

npm i dhtmlx-gantt -s

引入

1
2
3
4
5

// 引入模块

 import gantt from 'dhtmlx-gantt'

 import 'dhtmlx-gantt/codebase/dhtmlxgantt.css'

视图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

<template>
  <div class="warpper">
    <div ref="gantt" class="gantt-container" />
  </div>
</template>

<script>
// 引入模块
import gantt from 'dhtmlx-gantt'
import 'dhtmlx-gantt/codebase/dhtmlxgantt.css'
export default {
  name: 'Gantt',
  data() {
    return {}
  },
  mounted() {
  },
  methods: {
  },
}
</script>

渲染

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

export default {
  name: 'Gantt',
  data() {
    return {
      // 甘特图配置
      tasks: {
        data: [],
      },
    }
  },
  mounted() {
    this.init()
  },
  methods: {
    // 初始化
    init() {
      // 自动延长时间刻度
      gantt.config.fit_tasks = true
      // 允许拖放
      gantt.config.drag_project = true
      // 定义时间格式
      gantt.config.scales = [
        { unit: 'month', step: 1, date: '%F, %Y' },
        { unit: 'day', step: 1, date: '%j, %D' },
      ]
      // 添加弹窗属性
      gantt.config.lightbox.sections = [
        {
          name: 'description',
          height: 70,
          map_to: 'text',
          type: 'textarea',
          focus: true,
        },
        { name: 'type', type: 'typeselect', map_to: 'type' },
        { name: 'time', type: 'duration', map_to: 'auto' },
      ]
      // 初始化
      gantt.init(this.$refs.gantt)
      // 数据解析
      gantt.parse(this.tasks)
    }
  }
}

数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140

  data() {
    return {
      // 甘特图配置
      tasks: {
        data: [
          {
            id: 11,
            text: 'Project #1',
            type: gantt.config.types.project,
            progress: 0.6,
            open: true,
          },

          {
            id: 12,
            text: 'Task #1',
            start_date: '03-04-2022',
            duration: '5',
            parent: '11',
            progress: 1,
            open: true,
          },
          {
            id: 13,
            text: 'Task #2',
            start_date: '03-04-2022',
            type: gantt.config.types.project,
            parent: '11',
            progress: 0.5,
            open: true,
          },
          {
            id: 14,
            text: 'Task #3',
            start_date: '02-04-2022',
            duration: '6',
            parent: '11',
            progress: 0.8,
            open: true,
          },
          {
            id: 15,
            text: 'Task #4',
            type: gantt.config.types.project,
            parent: '11',
            progress: 0.2,
            open: true,
          },
          {
            id: 16,
            text: 'Final milestone',
            start_date: '15-04-2022',
            type: gantt.config.types.milestone,
            parent: '11',
            progress: 0,
            open: true,
          },

          {
            id: 17,
            text: 'Task #2.1',
            start_date: '03-04-2022',
            duration: '2',
            parent: '13',
            progress: 1,
            open: true,
          },
          {
            id: 18,
            text: 'Task #2.2',
            start_date: '06-04-2022',
            duration: '3',
            parent: '13',
            progress: 0.8,
            open: true,
          },
          {
            id: 19,
            text: 'Task #2.3',
            start_date: '10-04-2022',
            duration: '4',
            parent: '13',
            progress: 0.2,
            open: true,
          },
          {
            id: 20,
            text: 'Task #2.4',
            start_date: '10-04-2022',
            duration: '4',
            parent: '13',
            progress: 0,
            open: true,
          },
          {
            id: 21,
            text: 'Task #4.1',
            start_date: '03-04-2022',
            duration: '4',
            parent: '15',
            progress: 0.5,
            open: true,
          },
          {
            id: 22,
            text: 'Task #4.2',
            start_date: '03-04-2022',
            duration: '4',
            parent: '15',
            progress: 0.1,
            open: true,
          },
          {
            id: 23,
            text: 'Mediate milestone',
            start_date: '14-04-2022',
            type: gantt.config.types.milestone,
            parent: '15',
            progress: 0,
            open: true,
          },
        ],
        links: [
          { id: '10', source: '11', target: '12', type: '1' },
          { id: '11', source: '11', target: '13', type: '1' },
          { id: '12', source: '11', target: '14', type: '1' },
          { id: '13', source: '11', target: '15', type: '1' },
          { id: '14', source: '23', target: '16', type: '0' },
          { id: '15', source: '13', target: '17', type: '1' },
          { id: '16', source: '17', target: '18', type: '0' },
          { id: '17', source: '18', target: '19', type: '0' },
          { id: '18', source: '19', target: '20', type: '0' },
          { id: '19', source: '15', target: '21', type: '2' },
          { id: '20', source: '15', target: '22', type: '2' },
          { id: '21', source: '15', target: '23', type: '0' },
        ],
      },
    }
  },

拓展

一些设置都需要在 gantt.init(this.$refs.gantt) // 初始化 之前完成

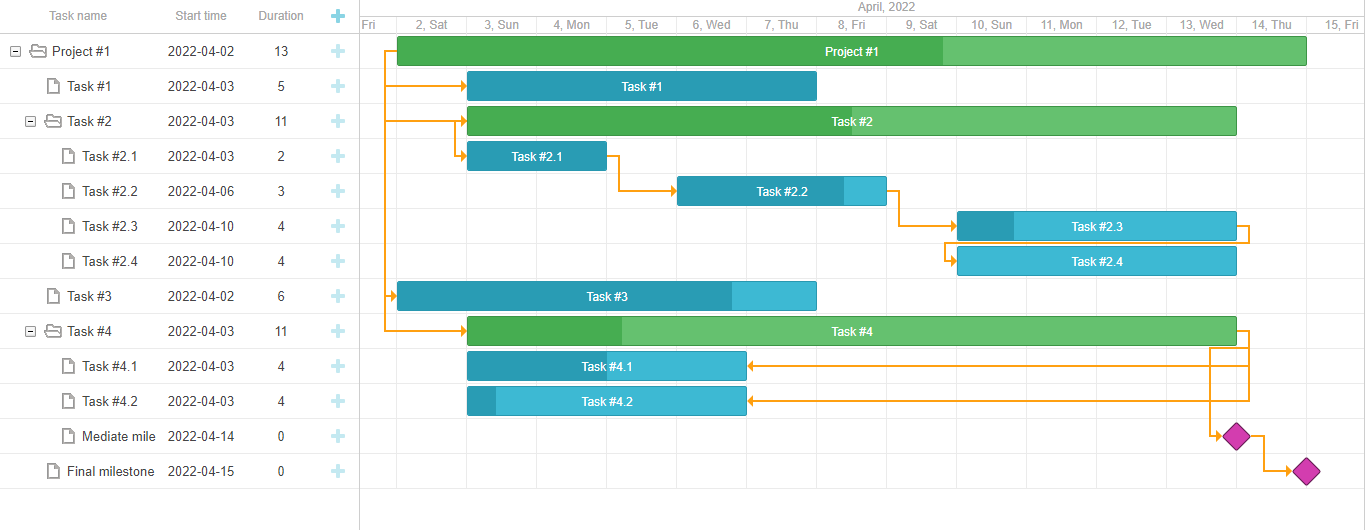

最初的样子，可以作为参照


修改时间格式

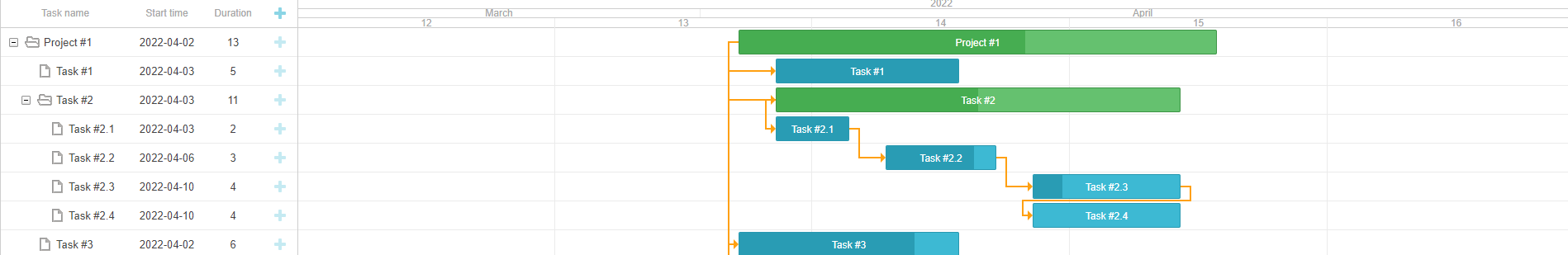

image-20220506145220533

修改前：

1
2
3
4
5
6
7
8

	  // 定义时间格式
      gantt.config.scales = [
        { unit: 'month', step: 1, date: '%F, %Y' },
        { unit: 'day', step: 1, date: '%j, %D' },
      ]

		// 初始化
        gantt.init(this.$refs.gantt)

修改后：

1
2
3
4
5
6
7
8
9

		// 定义时间格式
        gantt.config.scales = [
          { unit: 'year', step: 1, date: '%Y' },
          { unit: 'month', step: 1, date: '%F' },
          { unit: 'week', step: 1, date: '%w' },
        ]

		// 初始化
        gantt.init(this.$refs.gantt)
修改模板内容（横道内容）

添加代码

1
2
3
4
5
6
7

		//横道内容
        gantt.templates.task_text=function(start,end,task){
          return "<b>Name:</b> "+task.text+",<b> Holders:</b> "+task.users;
        };

		// 初始化
        gantt.init(this.$refs.gantt)
删除关联关系

修改前

1
2
3
4
5
6
7
8
9
10
11
12
13
14

		links: [
          { id: '10', source: '11', target: '12', type: '1' },
          { id: '11', source: '11', target: '13', type: '1' },
          { id: '12', source: '11', target: '14', type: '1' },
          { id: '13', source: '11', target: '15', type: '1' },
          { id: '14', source: '23', target: '16', type: '0' },
          { id: '15', source: '13', target: '17', type: '1' },
          { id: '16', source: '17', target: '18', type: '0' },
          { id: '17', source: '18', target: '19', type: '0' },
          { id: '18', source: '19', target: '20', type: '0' },
          { id: '19', source: '15', target: '21', type: '2' },
          { id: '20', source: '15', target: '22', type: '2' },
          { id: '21', source: '15', target: '23', type: '0' },
        ],

修改后

1
2
3

		links: [

          ],

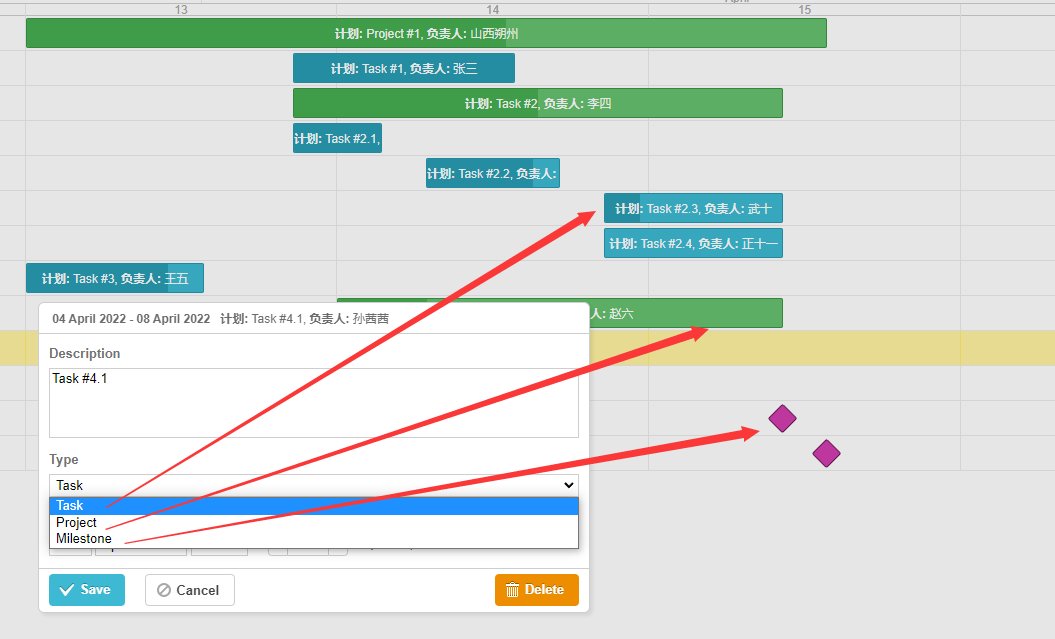

计划类型

image-20220506153002093

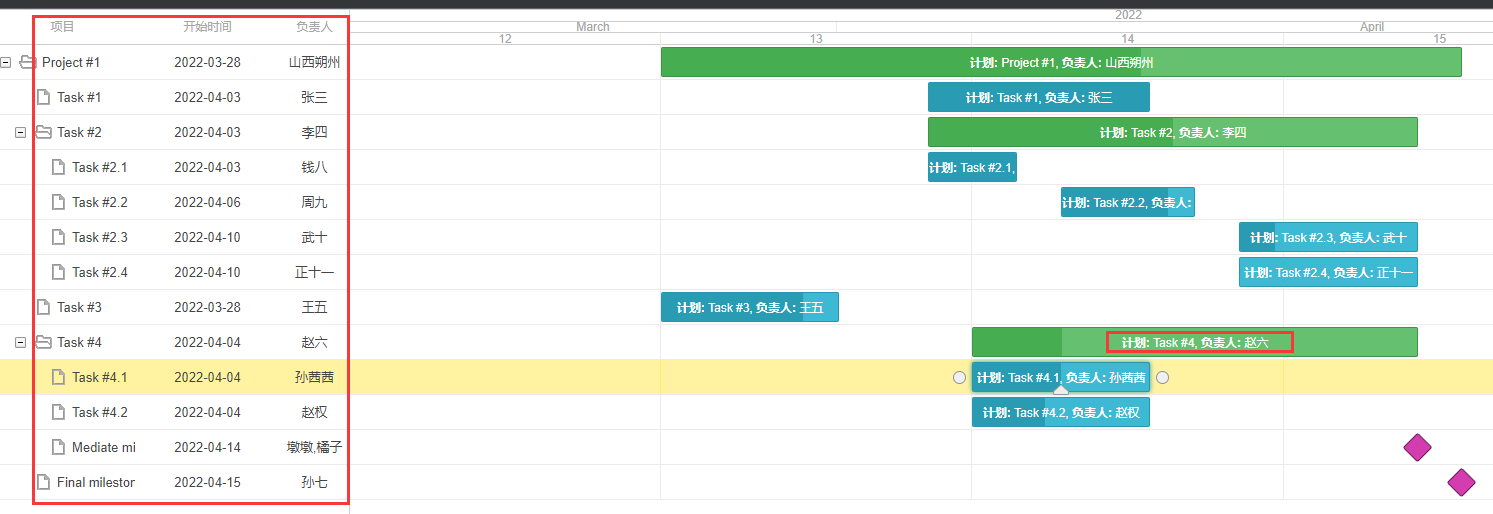

台面配置信息补充

image-20220506153103176

1
2
3
4
5
6
7
8
9
10
11

		//表头数据
		gantt.config.columns = [
          { name: "text", label: "项目", tree: true, width: "*" },
          { name: "start_date", label: "开始时间",  width: "*" },
          { name: "users", label: "负责人", align: "center" }
        ];

 		//横道内容
        gantt.templates.task_text=function(start,end,task){
          return "<b>计划:</b> "+task.text+",<b> 负责人:</b> "+task.users;
        };
使用中文
1
2

		//使用中文
        gantt.i18n.setLocale("cn");
左侧表格宽度
1
2

		//设置左侧表格的宽度
        gantt.config.grid_width = 460;
添加今天的标记线

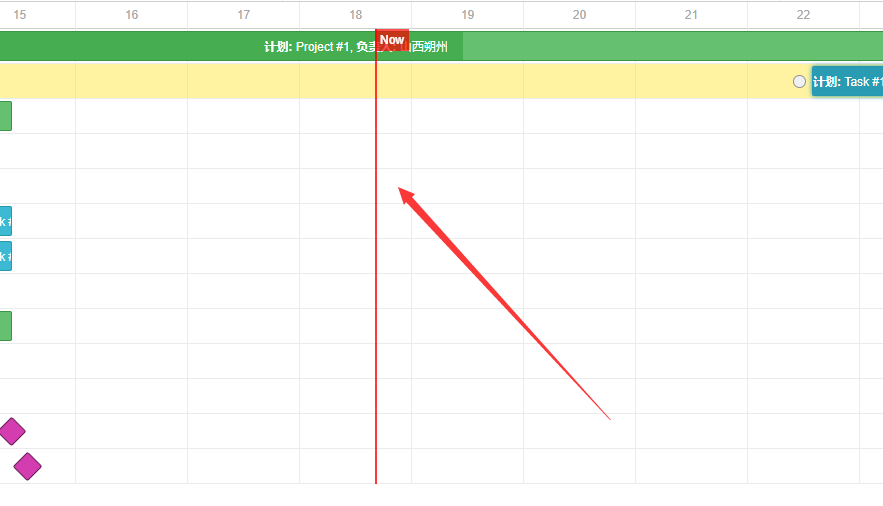

image-20220506161814746

1
2
3
4
5
6
7
8
9
10
11
12
13

 		gantt.plugins({
          marker: true
        });

		//今天的标记线
        var dateToStr = gantt.date.date_to_str(gantt.config.task_date);
        var markerId = gantt.addMarker({
          start_date: new Date(), //a Date object that sets the marker's date
          css: "today", //a CSS class applied to the marker
          text: "Now", //the marker title
          title: dateToStr( new Date()) // the marker's tooltip
        });
        gantt.getMarker(markerId); //->{css:"today", text:"Now", id:...}
换皮肤

https://docs.dhtmlx.com/gantt/desktop__skins.html

去官网找到一款皮肤，点击查看，打开超级管理员模式

image-20220506163634653

复制替换此文件

image-20220506163711608

甘特图元素的工具提示
1
2
3
4
5
6
7
8
9
10
11
12
13

		gantt.plugins({
          marker: true,
          tooltip: true
        });

        // 甘特图元素的工具提示
        gantt.templates.tooltip_text = function(start, end, task){
          return "<b>任务内容:</b>" + task.text +
                  "<br/><b>负责人:</b> " + task.users +
                  "<br/><b>计划开始:</b> " + task.start_date +
                  "<br/><b>进度:</b> " + task.progress +
                  "<br/><b>期限:</b> " + task.duration + '天'
        };

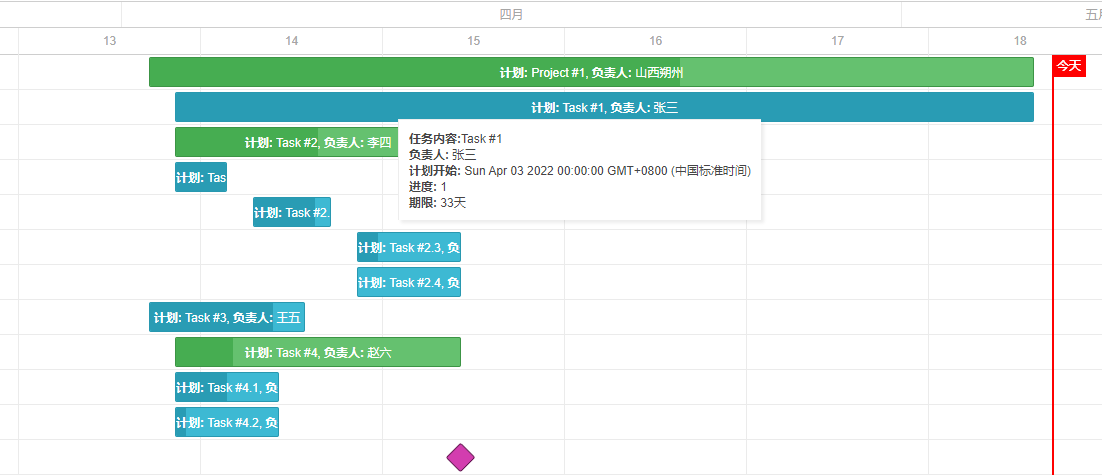

image-20220506164949801

实战经历

使用官网提供的 gantt.vue

引入组件

1

<gantt class="left-container" style="height: calc(100% - 30px)" :tasks="tasks" @task-updated="logTaskUpdate" @link-updated="logLinkUpdate" @task-selected="selectTask"></gantt>
导入/导出

导入xml/mpp

exportToMSProject 这里是用官方提供的 gantt.vue 的方法

1

<input type=button onclick="gantt.exportToMSProject({})" value="export" />

导出xml

importFromMSProject 这里是用官方的例子中的方法

1
2
3
4
5

        <div class="upload-btn-box">
            <input ref="filElem" type="file" class="upload-file">
            　　<Button @click="getFile" icon="ios-cloud-upload-outline" type="primary">加载</Button>
        </div>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

            getFile(){
                const that = this;
                const inputFile = this.$refs.filElem.files[0];
                gantt.importFromMSProject({
                    data: inputFile,
                    skip_circular_links: false,
                    //添加两个自定义属性 配合 attachEvent 使用
                    taskProperties: ["predecessorLink","wbsCode"],
                    callback: function (project) {
                        if (project) {
                            //清楚之前的数据
                            gantt.clearAll();

                            //继承甘特图的一些配置
                            if (project.config.duration_unit) {
                                gantt.config.duration_unit = project.config.duration_unit;
                            }
                            //填入数据
                            gantt.parse(project.data);

                            //根据link计算前置任务，官方接口收费
                            that.computerPredecessorLink(gantt);
                            //委托,遍历每个任务,得到 WBS 值
                            gantt.eachTask(function(task){task.wbsCode = gantt.getWBSCode(gantt.getTask(task.id))})

                            let taskCount = gantt.getTaskCount();
                            let linkCount = gantt.getLinkCount();
                            project.taskCount = taskCount;
                            project.linkCount = linkCount;
                            // that.ajax.post('/Gantt/ImportGantteDataToDB',that.qs.stringify(project)).then(res=>{
                            //     // console.log(res)
                            // })
                        }
                        //
                        // if (callback)
                        //     callback(project);
                    }
                });

                //从数据源加载任务时触发
    			gantt.attachEvent("onTaskLoading", function(task) {
                    if (task.$custom_data) {
                        //可以获取一些扩展属性值，可以查看官网[https://docs.dhtmlx.com/gantt/desktop__tags.html#projectproperties]支持的属性列表
                        task.predecessorLink = task.$custom_data["predecessorLink"];
                        //可以用来存储一些自定义参数
                        task.wbsCode = "";
                    }
                    return true;
                });

                // gantt.attachEvent("onLinkLoading", function(link) {
                //
                //     return true;
                // });

                //根据link计算前置任务字符串
                //link 的一些属性包含了前置条件信息
                computerPredecessorLink(gantt){
                    gantt.getLinks().map(link=>{
                        let predecessorLink
                        if(link.type != 0){
                            if(link.lag == 0){
                                predecessorLink = link.source + this.linkType[link.type];
                            }else{
                                predecessorLink = link.source + this.linkType[link.type] + "+" + link.lag + "个工作日";
                            }
                        }else{
                            if(link.lag == 0){
                                predecessorLink = link.source;
                            }else{
                                predecessorLink = link.source + "+" + link.lag + "个工作日";
                            }
                        }
                        let task = gantt.getTaskByIndex(link.target - 1);
                        task.predecessorLink = predecessorLink;
                        gantt.refreshTask(task.id);
                    })
                },
填入数据

gantt.parse(this.tasks);

日、周、年切换
1
2
3
4
5
6
7

<div class="top" style="height: 30px">
    <el-radio-group v-model="radio" @change="changeScales">
        <el-radio :label="1">月</el-radio>
        <el-radio :label="2">周</el-radio>
        <el-radio :label="3">日</el-radio>
    </el-radio-group>
</div>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

changeScales(){
    if(this.radio === 1){
        gantt.config.scales = [
            { unit: 'month', step: 1, date: '%F, %Y' },
            { unit: 'month', step: 1, date: '%M' },
        ]
        gantt.render();
    }else if(this.radio === 2){
        gantt.config.scales = [
            { unit: 'month', step: 1, date: '%F, %Y' },
            {unit: "week", step: 1, format: "%W"}
        ]
        gantt.render();
    }else if(this.radio === 3){

        gantt.config.scales = [
            { unit: 'month', step: 1, date: '%F, %Y' },
            {unit: "day", step: 1, format: "%D"}
        ]
        gantt.render();
    }
},

dhtmlx-Gantt

官方文档参考连接：

其他配置参考连接：

https://www.csdn.net/tags/OtTaUg2sNDk2Mi1ibG9n.html

https://blog.csdn.net/qq_24472595/article/details/81630117?utm_medium=distribute.pc_relevant.none-task-blog-BlogCommendFromMachineLearnPai2-1.control&depth_1-utm_source=distribute.pc_relevant.none-task-blog-BlogCommendFromMachineLearnPai2-1.control

FEATURED TAGS
Blog 博客 Git Github js jQuery 选项卡 面试 变量提升 数据类型 DOM 事件监听 webpack Vue 包管理工具 autoCAD C# 二次开发 动态数组 NPOI Java maven Swagger asp.net Core gantt vue pdf asp.net core world Snowflake axios
FRIENDS
