Swagger 为 asp.net Core 配置 Api 文档

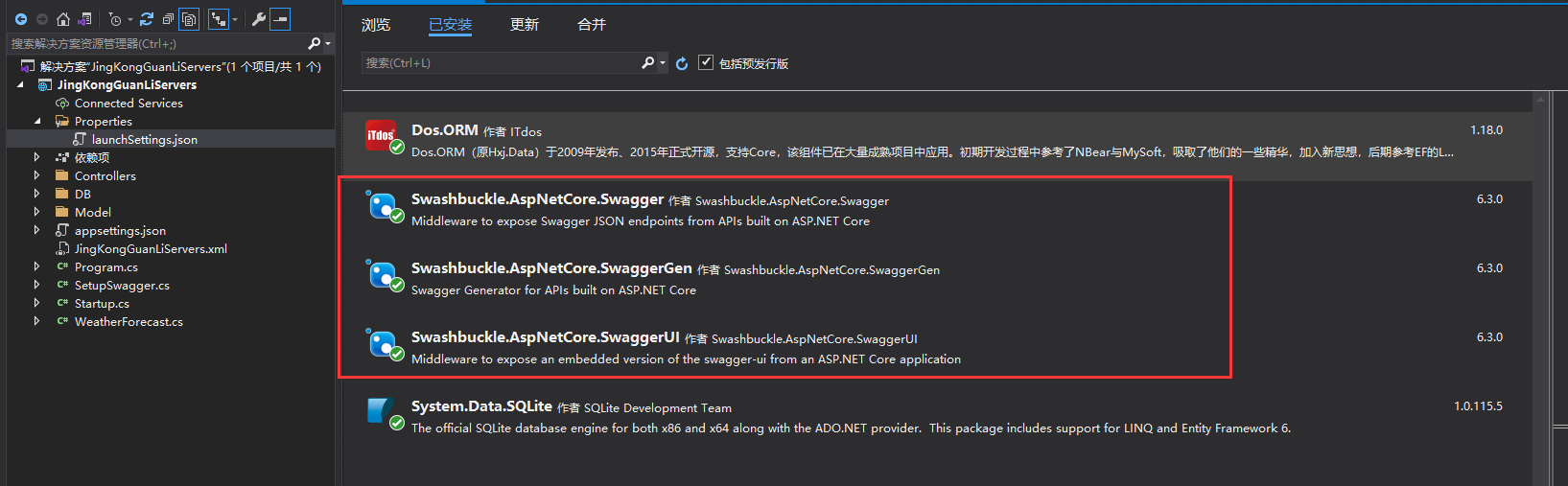

1、安装 NuGet 插件
有些教程只提示安装 “Swashbuckle.AspNetCore.Swagger “
有的教程提示安装 “Swashbuckle.AspNetCore.SwaggerGen “ 和 “Swashbuckle.AspNetCore.SwaggerUl “
我这里都安装了。
2、在 Startup 中注册
我这里先封装成了一个类
public static class SetupSwagger
{
public static void AddSwaggerSetup(this IServiceCollection services)
{
if (services == null) throw new ArgumentNullException(nameof(services));
var ApiName = "WebApi.Core";
services.AddSwaggerGen(c =>
{
c.SwaggerDoc("V1", new OpenApiInfo
{
// { ApiName } 定义成全局变量,方便修改
Version = "V1",
Title = $"{ApiName} 接口文档--Netcorv1e 3.1",
Description = $"{ApiName} HTTP API V1",
});
c.OrderActionsBy(o=>o.RelativePath);
//获取xml注释文件的目录
//生成时会自动生成一个 项目名称.xml 文件
var xmlPath = Path.Combine(AppContext.BaseDirectory, "JingKongGuanLiServers.xml");
c.IncludeXmlComments(xmlPath,true);
});
}
}
然后在 Startup 类 -> ConfigureServices 中注册
1
2
3
4
5
6
7
8
// This method gets called by the runtime. Use this method to add services to the container.
public void ConfigureServices(IServiceCollection services)
{
//注册 Swagger api帮助文档
services.AddSwaggerSetup();
services.AddControllers();
}
3、 在 Startup 类 -> Configure 管道中配置中间件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
if (env.IsDevelopment())
{
app.UseDeveloperExceptionPage();
}
//在管道（pipline）中添加Swagger（中间件）,及其路径配置
app.UseSwagger();
app.UseSwaggerUI(s =>
{
s.SwaggerEndpoint($"/swagger/V1/swagger.json", "WebApi.Core V1");
s.RoutePrefix = "ApiDoc";
});
app.UseHttpsRedirection();
//启动路由中间件
app.UseRouting();
app.UseAuthorization();
app.UseEndpoints(endpoints =>
{
endpoints.MapControllers();
});
}
4、把启动页设置为配置的文档页面

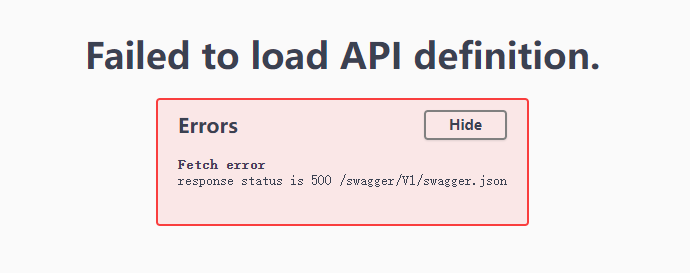

遇到过的错误：
解决办法：

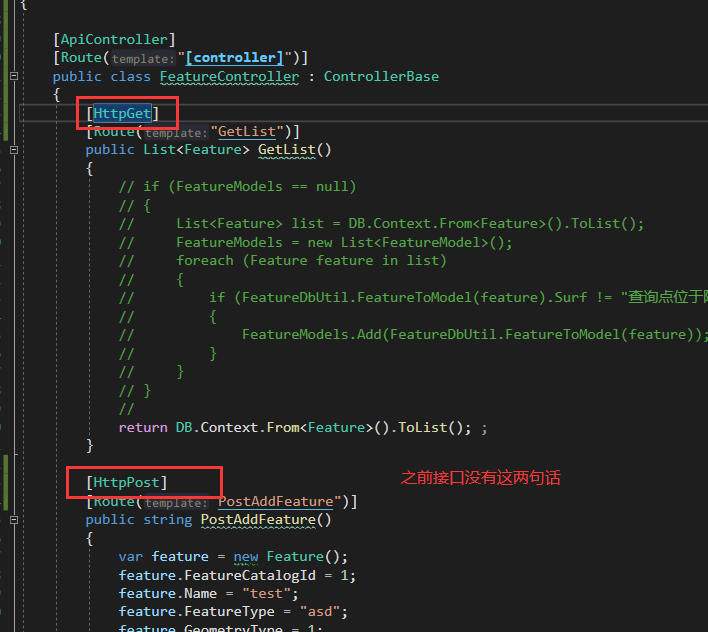

检查API接口方法的请求方式是否书写！
